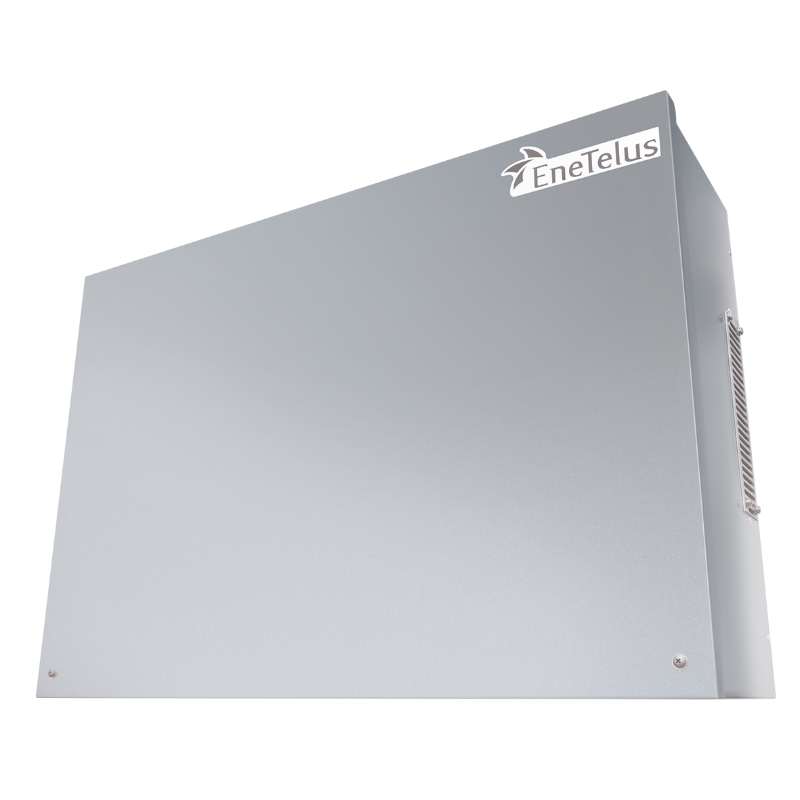

EPL-T99MP5
Diamond Zebra Electric
- EPL-T99MP5
- Dimensions(H/W/D)
- 563.1 / 810.2 / 242.2 (mm)
- Weight
- 56kg
- Rated output power
- 9.9KVA
- Maximum input voltage
- 570V
- Nominal AC voltage range
- 182 ～ 222V
- Operation voltage range / Rated input voltage
- 150 ～ 550V / 340V
- MPPT voltage range
- 150-550V
- AC power frequency
- 50Hz / 60Hz
- Efficiency
- 93.1%以上
- Topology
- High frequency isolating transformer
- Operating temperature range
- -20℃ ~ +50℃
- Operating humidity range
- 0 ~ 90 %（Non-condensing）
- Environmental category
- Outdoors
- AC Connection
- Three-phase, Three-wire
