Products

CEPT-P3HA2010B
CEPT-P3HA29P9B

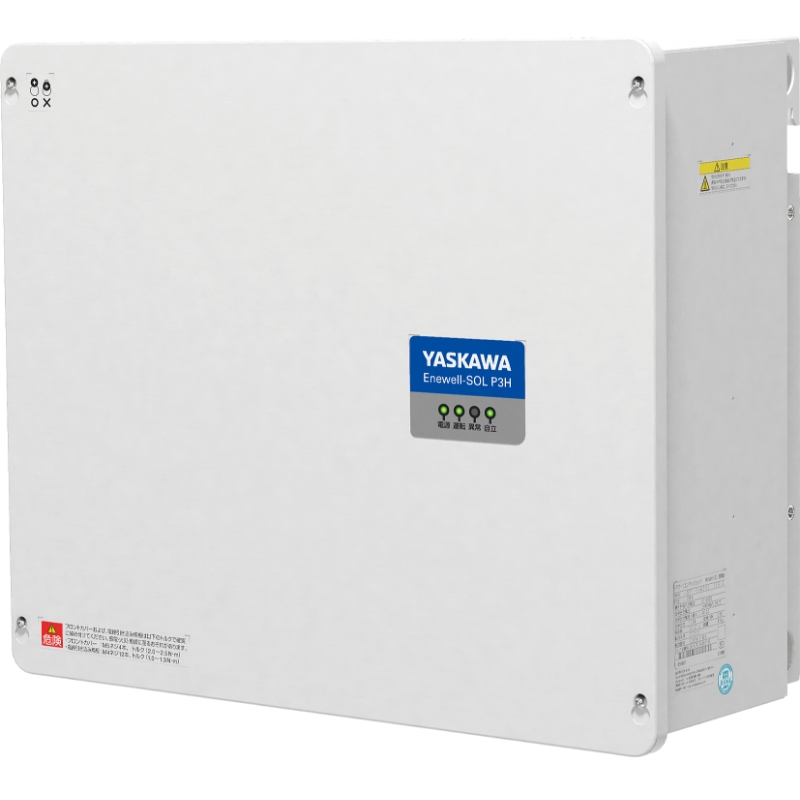

YASKAWA Electric

  • CEPT-P3HA2010B
  • CEPT-P3HA29P9B
Dimensions(H/W/D)
540 / 600 / 305 (mm)
Weight
Approx. 42kg
Rated output power
9.9kW
Maximum input voltage
DC600V
Nominal Voltage
AC202V (AC210/220/230V)
Operating Voltage Range
DC150V ~ DC600V
(Minimum starting voltage 200V)
AC power frequency
50Hz / 60Hz
Efficiency
96.70%
Topology
Transformerless
Operating temperature range
-20℃ ~ +60℃
Operating humidity range
25% ~ 95%RH（Non-condensing）
Environmental category
Interior / Outdoors
AC Connection
Three-phase, Three-wire
Dimensions(H/W/D)
540 / 600 / 305 (mm)
Weight
Approx. 42kg
Rated output power
10kW
Maximum input voltage
DC600V
Nominal Voltage
AC202V (AC210/220/230V)
Operating Voltage Range
DC150V ~ DC600V
(Minimum starting voltage 200V)
AC power frequency
50Hz / 60Hz
Efficiency
96.70%
Topology
Transformerless
Operating temperature range
-20℃ ~ +60℃
Operating humidity range
25% ~ 95%RH（Non-condensing）
Environmental category
Interior / Outdoors
AC Connection
Three-phase, Three-wire
